Line Connector Single line Elastomeric connections

Single Line Connector

Our single line connectors are based on elastomeric material with embedded conductors. The conductors can be metal wires or conductive particles embedded in the elastomeric media. The Min. connectors pitch can be as small as 0.04mm.

The connector connects 2 devices such as PCB, Flex or any other substrates. The connection is being established by pressing the connector between the two devices. Small pitch connector can guarantee redundancy of contact paths – this makes a very reliable connector.

By using this uniqe technology, we can design almost any connector. Read more: Connectors Design Guidelines

line connectors advantages

Solder-free connections, Ease of Assembly.
Fine Pitch.
Mixed Signals.
Low Cost.
High Speeds.
Superior Performance Under Harsh Condition such as Shock, Vibration, Humidity & Wide Operating Temperature.

Sample projects:

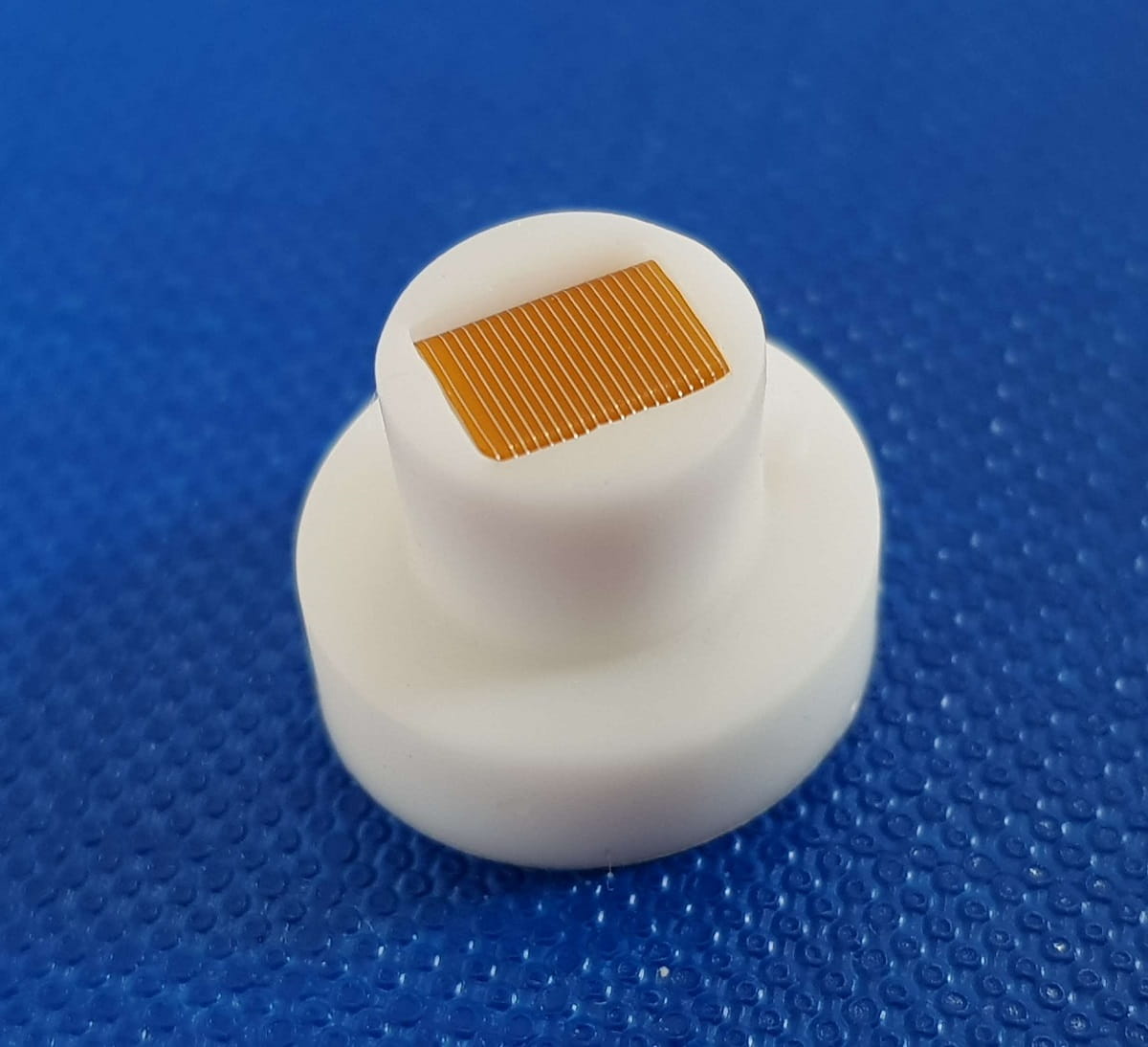

Gasket Connectors Fluid-sealed - Medical Device

This application required a reliable, soft/non-marking, fluid-sealed connection with a wide deflection range for repeated contact of a home-use medical treatment device.

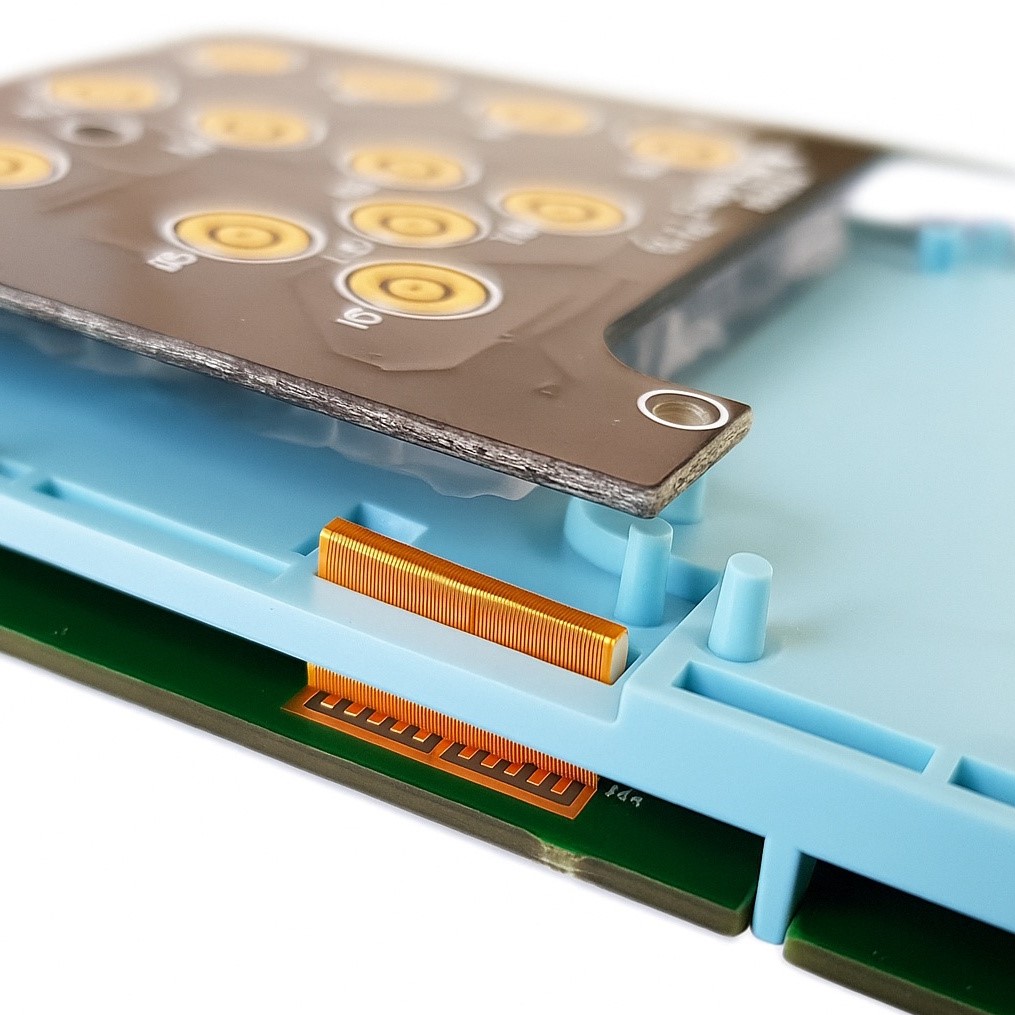

Elastomeric connector connecting two boards

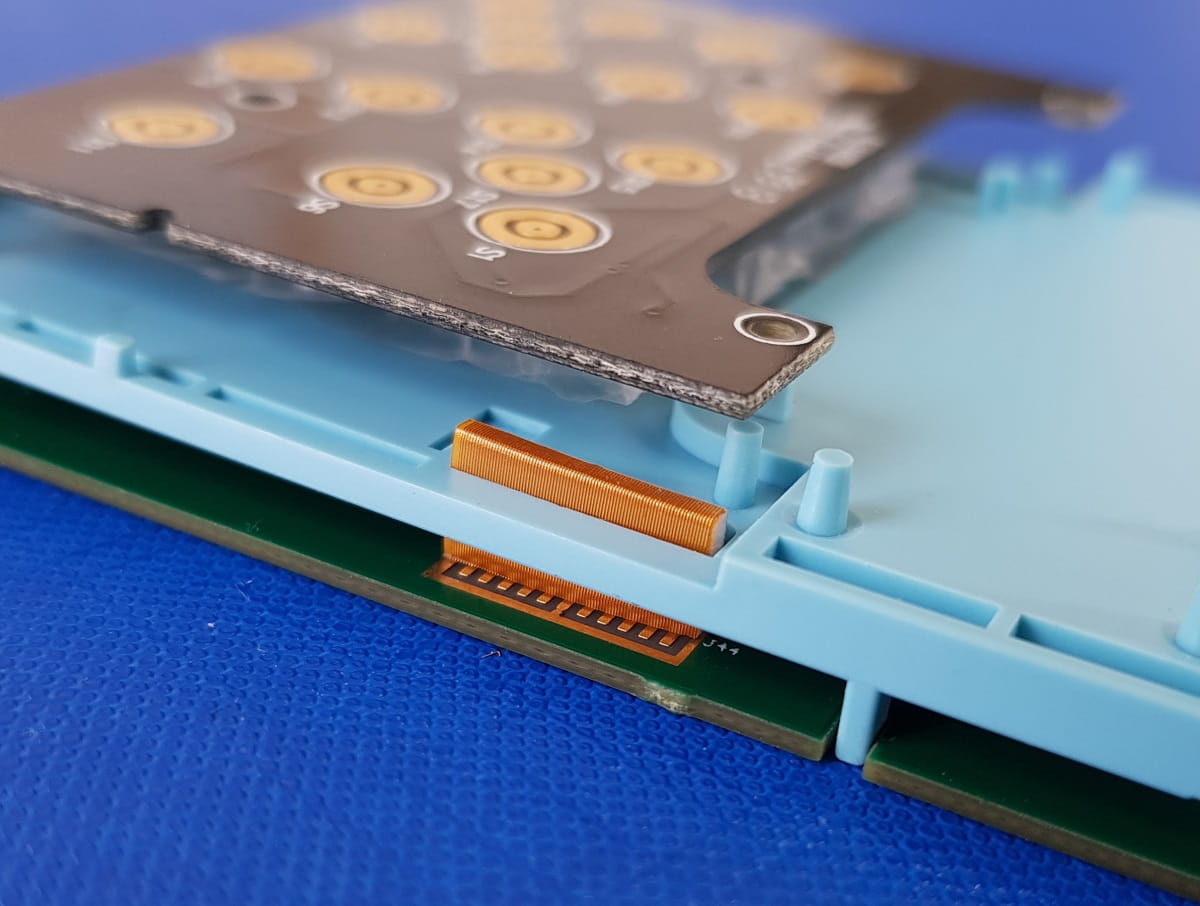

Payment Terminal Boards Connection

Connecting two boards with specific height separation, with a shock and vibration resistant elastomeric connector and using the existing plastic support.

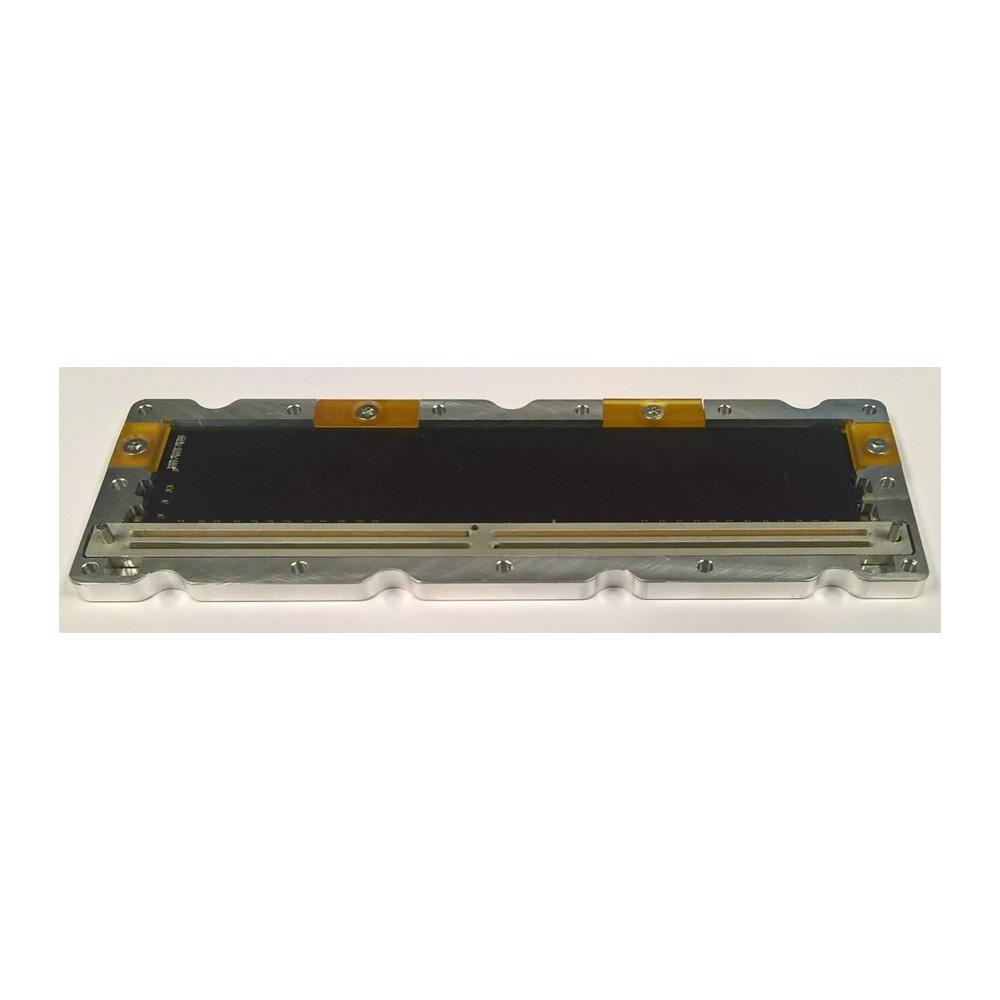

Memory Module Board to Board Connection

Using an elastomer module for board-to-board specially designed for memory module parallel board mounting with thin upper and lower PCBs and low stack height.

The connector connects 2 devices such as PCB, Flex or any other substrates.

The connection is being established by pressing the connector between the two devices.

The Min. connectors pitch can be as small as 0.05mm
Using small pitch connector can guarantee redundancy of contact paths – this makes a very reliable connector.
Using this technology, we can design almost any connector.
