Elastomer Matrix Connector

Realization of Nanocomposites adapted by Elastomeric matrices

Our Elastomer matrix which embedded in silicone rubber is made to produce overall anisotropic conductive properties.





Matrix Elastomeric Connectors

  • Conductors – Multiple, Redundant Conductors.
  • Board Separations as Small as 0.5mm.
  • Pad Pitches Below 0.5 x 0.5mm.
  • Contact Force Provided by the Elastomer.
  • Holding Force can be: Housing, Screws, Magnets etc.
  • Connect any substrate: Glass, PCB, Silicon Chips, FFC/FPC.
  • Interconnection, testing: BGA, FPGA, WAFER, IC.
  • Solder-free connections.
  • Fine Pitch.
  • Superior Performance.

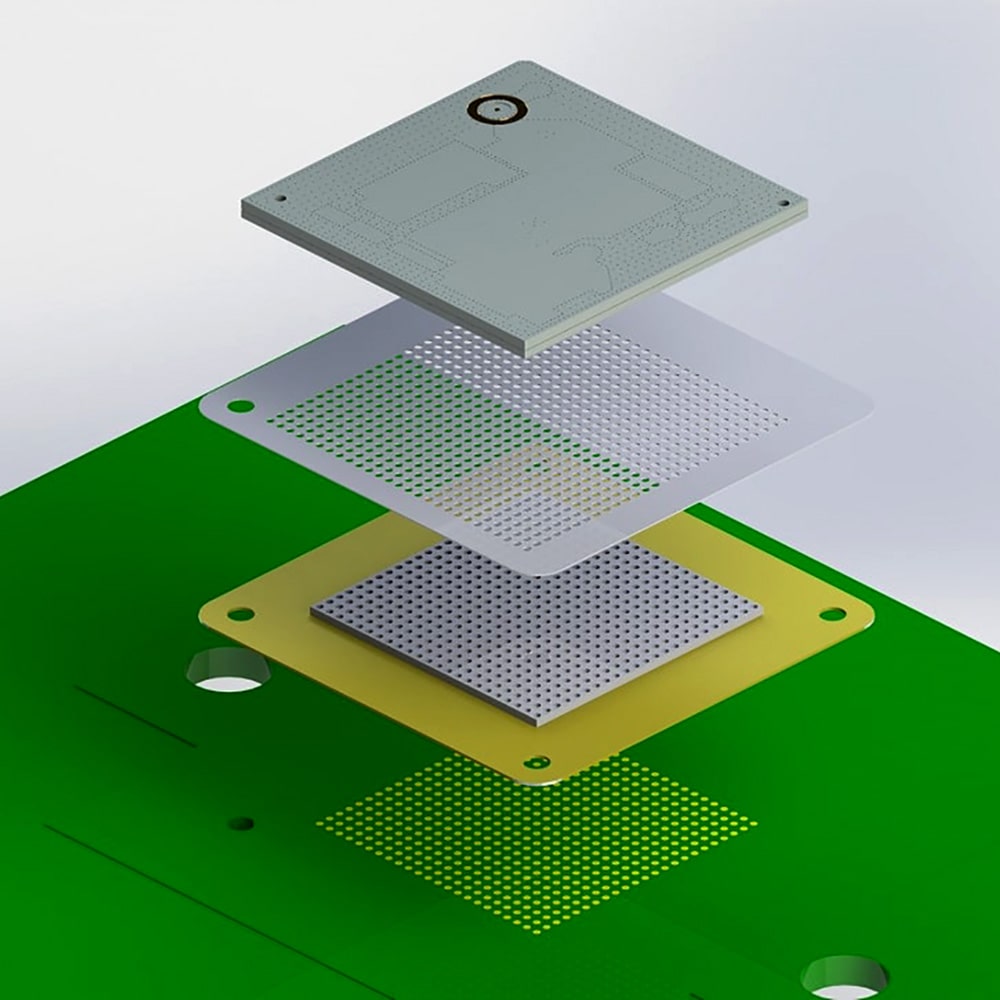

Test Socket 23x23
Logic IC BGA contacts - Test Socket 23x23

Device for testing a logic IC with over 500 BGA contacts on one surface.

Read more

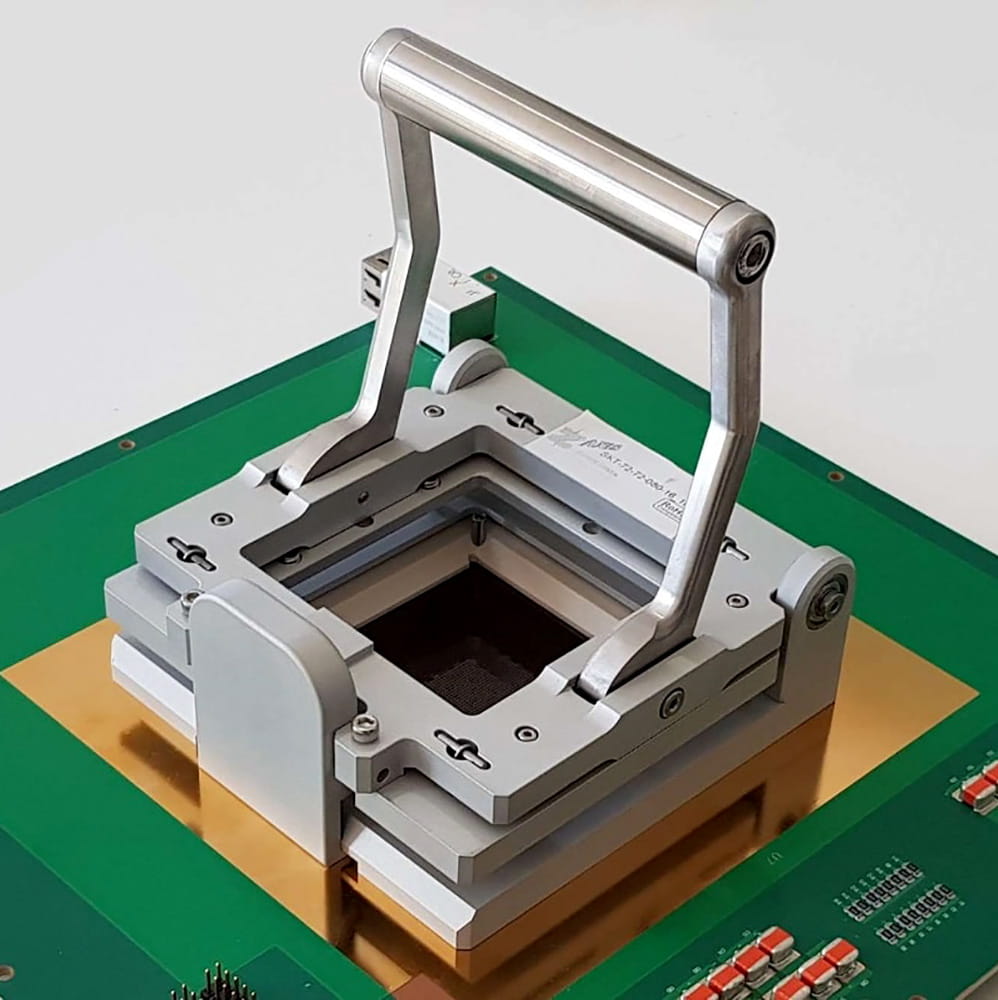

Test Socket 72x72
BGA Contacts & RF Coaxial Pads - Test Socket 72x72

Device for testing a component with over 5,000 BGA contacts on one surface and 16 RF coaxial pads on the other.

Read more

BGA sockets

Connect any pad's layout formation such as BGA sockets with pitch down to 0.4X0.4 mm.

Contact us for information.
