Application:
Custom test fixture
Problem:

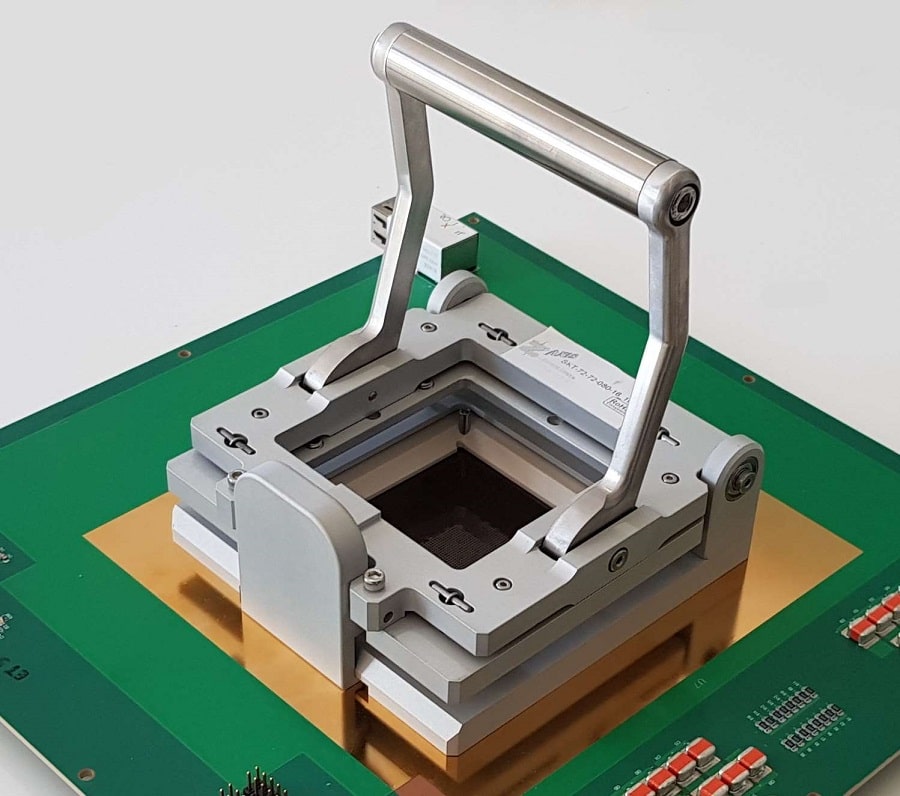

Device for testing a component with over 5,000 BGA contacts on one surface and 16 RF coaxial pads on the other. The test fixture allows connection to both surfaces with a solderless, temporary connection. The device generates high-frequency signals.
